3D printing, also known as additive manufacturing, has revolutionized industries across the globe by enabling the creation of complex, customized objects directly from digital files. This transformative technology has found applications in sectors ranging from aerospace and automotive to healthcare, fashion, and construction. This article explores the history, various 3D printing technologies, and their evolving applications.

What is 3D Printing?

At its core, 3D printing involves creating a physical object from a digital model. Unlike traditional manufacturing methods, which involve cutting away material (subtractive manufacturing), 3D printing builds objects layer by layer, adding material as it progresses. The 3D model typically comes from a computer-aided design (CAD) file, and specialized printers use a variety of materials to build the object.

History of 3D Printing

The concept of 3D printing dates back to the 1980s. The first major milestone came in 1981 when Hideo Kodama of the Nagoya Municipal Industrial Research Institute in Japan invented a rapid prototyping system using UV light to harden layers of photopolymer resin. This concept evolved further, and in 1984, Charles Hull developed stereolithography (SLA), the first true 3D printing technology, which led to the creation of 3D Systems, the first 3D printing company.

Since then, 3D printing has expanded to a wide range of industries, enabling faster prototyping, lower production costs, and the ability to create highly customized parts that would be difficult or impossible to produce using traditional methods.

Types of 3D Printing Technologies

There are several types of 3D printing technologies, each with its strengths, weaknesses, and unique applications. These technologies can be broadly categorized into the following:

1. Stereolithography (SLA)

SLA was the first commercialized 3D printing technology. It uses ultraviolet (UV) light to cure liquid resin into hardened plastic. The laser moves across the surface of the resin tank, hardening the resin layer by layer. SLA is known for its ability to create extremely detailed and smooth surfaces.

Applications: Prototyping, jewelry, dental models, and parts that require high precision.

Materials: Photopolymer resins.

Strengths: High-resolution prints, smooth surfaces, fine detail.

Limitations: Material options are limited compared to other technologies; parts can be fragile.

2. Fused Deposition Modeling (FDM)

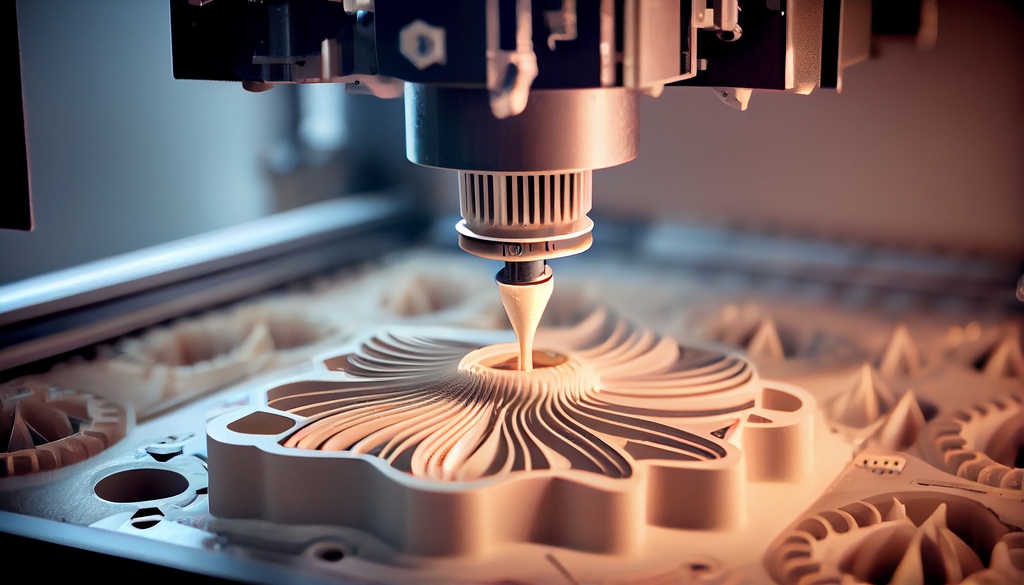

FDM, also known as FFF (Fused Filament Fabrication), is one of the most common and accessible 3D printing technologies. In FDM, a thermoplastic filament is heated until it becomes molten, and then extruded through a nozzle onto the build platform. The printer builds the object layer by layer, with each layer bonding to the one below it.

Applications: Prototyping, low-cost production, educational purposes, consumer products.

Materials: PLA, ABS, nylon, PETG, and other thermoplastics.

Strengths: Affordable, easy to use, a wide variety of materials available.

Limitations: Lower resolution compared to SLA, visible layer lines, and strength depends on the material used.

3. Selective Laser Sintering (SLS)

SLS uses a high-powered laser to sinter powdered material (usually nylon or metal) into a solid structure. The laser selectively melts the powder layer by layer, binding it together to form the object. SLS doesn’t require support structures like other technologies because the powder itself supports the part during the printing process.

Applications: Functional prototypes, low-volume production, automotive parts, and aerospace components.

Materials: Nylon, metal powders (stainless steel, aluminum, titanium), and elastomers.

Strengths: High durability, can create complex geometries, no need for support structures.

Limitations: Expensive, post-processing may be required to remove excess powder.

4. Multi Jet Fusion (MJF)

MJF is a powder-based 3D printing process developed by HP. It uses an inkjet array to apply a binding agent to a layer of powder, which is then fused using heat. MJF offers high-speed printing, better mechanical properties, and greater precision than SLS.

Applications: Functional prototypes, production-grade parts, and small-batch manufacturing.

Materials: PA12 (nylon), elastomers, and other polymer powders.

Strengths: Faster than SLS, high accuracy, excellent mechanical properties.

Limitations: Requires specialized equipment and expertise, limited material options compared to other methods.

5. Direct Metal Laser Sintering (DMLS)

DMLS is similar to SLS, but it uses a laser to fuse metal powders together, allowing for the creation of complex, durable metal parts. DMLS is widely used in industries such as aerospace, automotive, and medical devices.

Applications: Aerospace parts, medical implants, metal prototypes, and functional components.

Materials: Stainless steel, titanium, aluminum, cobalt-chrome alloys, and more.

Strengths: High precision, strong metal parts, ideal for complex geometries.

Limitations: Expensive, post-processing required to smooth parts, limited material choices.

6. Binder Jetting

In Binder Jetting, a liquid binding agent is selectively deposited onto layers of powder material, bonding the particles together. This process is then repeated layer by layer. Binder Jetting does not require high heat to fuse the materials, making it suitable for a wide range of applications.

Applications: Sand casting, metal casting, architectural models, and full-color 3D printing.

Materials: Metal powder, sand, gypsum, and other powders.

Strengths: Fast, capable of producing full-color models.

Limitations: Post-processing required, parts are typically not as strong as those made with DMLS or SLS.

7. Laminated Object Manufacturing (LOM)

LOM involves layering sheets of material (such as paper, plastic, or metal foil) and bonding them together with heat or adhesive. A laser or blade is used to cut the material into the desired shape layer by layer.

Applications: Prototyping, architectural models, and concept models.

Materials: Paper, plastic, and metal laminates.

Strengths: Low cost, relatively fast.

Limitations: Limited material properties, not suitable for production parts.

Applications of 3D Printing

3D printing is becoming increasingly integral in a wide variety of industries. Some of the notable applications include:

Healthcare:

Custom Prosthetics and Implants: 3D printing allows for the creation of patient-specific prosthetics, implants, and surgical guides, providing a better fit and reducing the risk of complications.

Bioprinting: The future of 3D printing includes the potential to print human tissues and organs for transplantation. Researchers are working on printing cells and biomaterials to create functional biological structures.

Aerospace and Automotive:

Lightweight Parts: In industries like aerospace and automotive, 3D printing enables the creation of lightweight parts that retain strength, improving fuel efficiency and performance.

Customized Tools and Components: Components used in manufacturing can be customized and printed quickly, reducing lead times and costs.

Construction:

3D-Printed Homes: Companies are exploring the use of 3D printing for constructing houses and buildings, often using concrete or other specialized materials to create walls and structural components quickly and cheaply.

Fashion and Consumer Products:

Custom Jewelry and Accessories: 3D printing has enabled jewelry designers to create intricate, one-of-a-kind pieces with minimal waste.

Customized Clothing: 3D-printed garments and footwear are making waves in the fashion industry, allowing for bespoke products that fit individual preferences and needs.

Education:

Learning Tools: 3D printing is used in schools to create educational tools, models, and interactive learning resources.

The Future of 3D Printing

As 3D printing technology continues to evolve, we can expect the following trends:

Materials Advancements: The development of new materials will broaden the applications of 3D printing, allowing for stronger, more flexible, and even biocompatible materials.

Faster Printing: Improvements in printer speed and efficiency will make 3D printing more practical for large-scale manufacturing.

Industry 4.0 Integration: The integration of 3D printing with other technologies such as AI, IoT, and automation will streamline manufacturing processes, leading to smarter, more efficient production systems.

Conclusion

3D printing is no longer just a tool for hobbyists and small businesses. It is now a powerful technology with the potential to transform industries, enable mass customization, and reduce environmental impact by minimizing waste. From healthcare to aerospace, the possibilities are vast and growing rapidly as technology continues to improve. With the ongoing advancements in materials, speed, and precision, 3D printing is poised to become an even more integral part of manufacturing and design in the future.
